Rackmount Panel PC

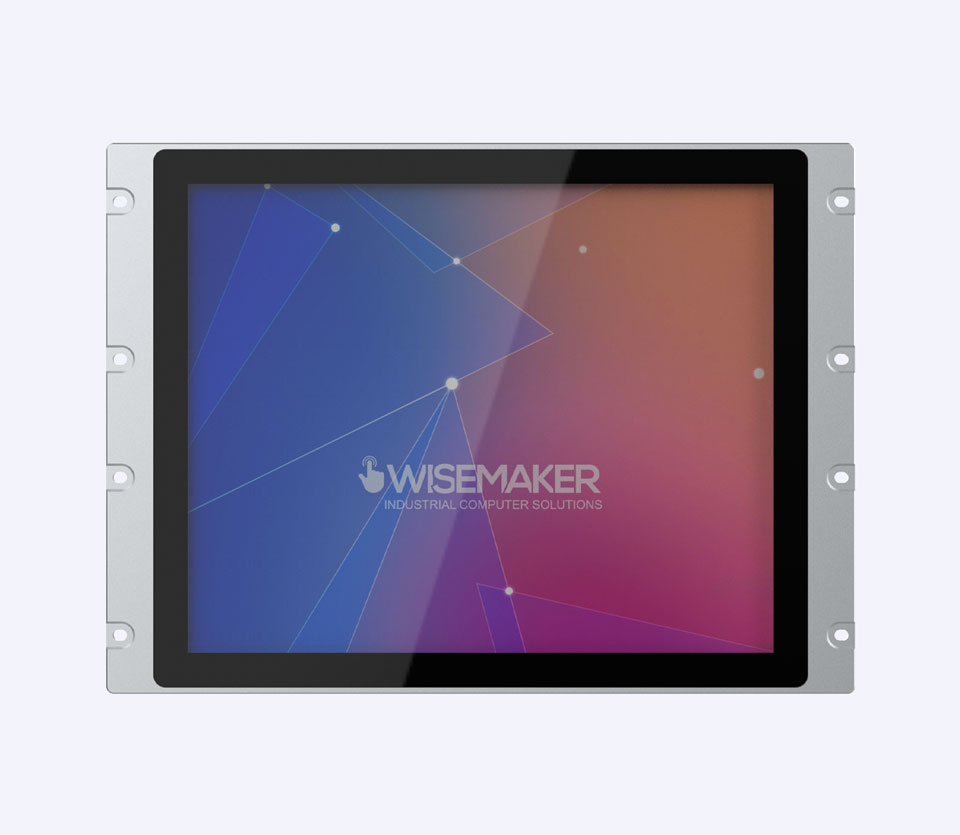

19 inch Rackmount Panel PC – Intel-Powered for Automation & Edge

A 19 inch Rackmount Panel PC that brings performance and touchscreen control into one clean rack-ready unit. Supporting Intel 6th ~7th, 11th to 14th Gen i3, i5, and i7 processors, it scales easily from everyday control tasks to heavier computing needs like automation control, visualization, and edge processing. The durable aluminum front bezel protects the display, paired with EETI industrial touch, provides consistent, dependable precision for continuous industrial operation. Ideal for HMI dashboards, industrial automation racks, and centralized control stations.

Key Features
Rackmount Panel PC EETI Touch Panel PC Industrial Rack HMI PC Automation Rack Panel PC
Request Quote

Rackmount Panel PC Features

  •  19 inch 1280×1024 TFT Display .
  •  Intel 6th - 7th, 11th – 14th Gen i3 / i5 / i7 CPU options.
  •  Rugged aluminum front bezel.
  •  Large Aluminum Heatsink for efficient heat dissipation.
  •  Precise, stable EETI industrial touch.
  •  24/7 operation support.
  •  Great for rack HMI, automation, and visualization.
  •  Flexible performance for both standard and demanding tasks.


General Specifications

     Cooling System: Fanless design
     Sizes: 19 inches (8U) 482.6 x 355 x 60mm
     Enclosure:   Front bezel: 6063 aluminum alloy
     Housing：6063 aluminum cooling cover + metal sheet with coating
     Mounting: Rackmount, VESA Mount
     Power Input: 12VDC / 9 ~36 VDC


Display:

     Display Device: TFT color
     Display Size: 19 inch 4:3 (H:V)
     Resolution: 1280x1024
     Display Colors: 262K/16.7M
     Luminance (cd/m2): 300cd
     Viewing Angle (H-V): 89/89/89/89
     Contrast Ratio: 1000:1
     Backlight: LED
     Backlight Lifetime (hrs): LED / 30,000
     Touchscreen: Projected Capacitive 10-Point Multitouch

System Hardware:

      CPU processor options:

          Intel® Celeron J1900 quad-core
          Intel Elkhart LakeK Intel® core Celeron J6412 quad-core
          Intel Skylake i3-6006U/6100U; i5-6200U, i7-6500 dual-core
          Intel Kabylake i3-7020U/7100U; i5-7200U; i7-7500U dual-core
          Intel Tiger lake i3-1115G4 dual-core; i5-1135G7/1145G7 quad-core; i7-1165G7 quad-core
          Intel Alder Lake Gen. 12th i3-1210U/1215U 6-core; i5-1235U/1245U 10-core; i7-1255U/1265U 10-core
          Intel Raptor Lake Gen. 13th i3-1305U/1315U 6-core; i5-1335U/1345U 10-core; i7-1355U/1365U 10-core
          Intel Meteor Lake Gen. 14th Ultra 5 125U/135U 12-core


      Memory:
          Dual channel DDR3/DDR4/DDR5 SO-DIMM 4GB/8GB/16GB/32GB/64GB available.


      Storage:
           64GB,128GB,256GB,512GB SSD,1TB,2TB SSD


      External Interface/I/O:
          USB: 4x USB version or 6x USB version
          LAN: Single or Dual x 10/100/1000Mbit RJ45 Ports
          Serial Ports: 2x COM or 6x COM ports Full-PIN (RS232 default)
          Optional COM: RS422 / RS485 COM / CANBus
          VGA: 1x VGA Connector
          HDMI: 1x HDMI Connector
          Audio: MIC-In, EAR-Out


Environment:

     Operating Temperature: -10°C ~ 60°C
     Storage Temperature: -20°C ~ 70°C
     Humidity Range (RH): Operating, 95% RH @ 40° C, Non-Condensing
                                     Non-Operating, 95% RH @ 60° C, Non-Condensing
     Ingress Protection: IP65/IP66-rated front panel

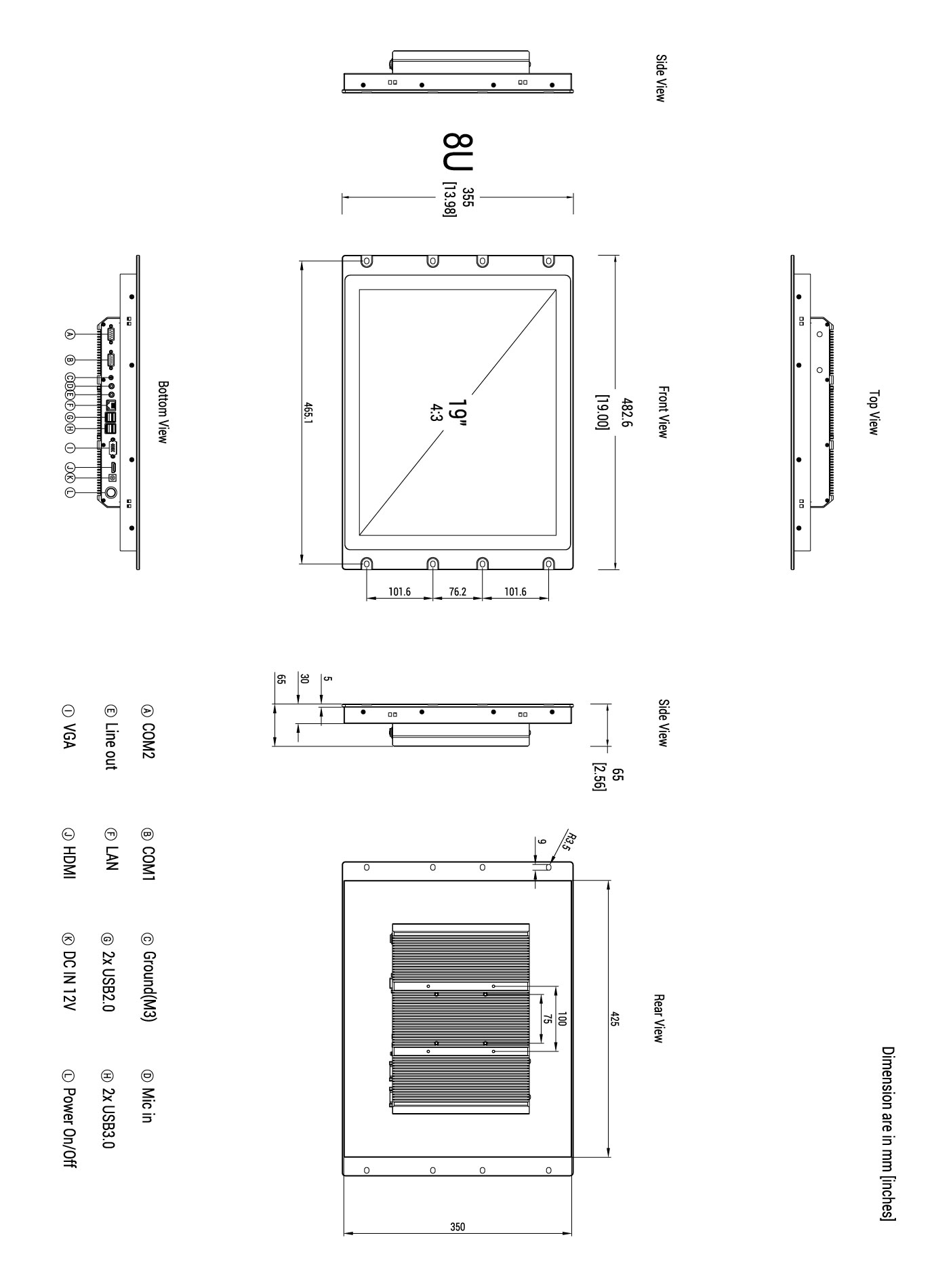

Rackmount Panel PC dimension

Yes! We specialize in fully customized industrial computing solutions, including high-brightness outdoor displays, fully waterproof IP65/IP66 Panel PCs & monitors, optical bonding technology for enhanced clarity, and various mounting options. Whether you need a specific CPU, RAM, storage, or enclosure design, we can tailor the product to fit your application.

Our industrial PCs stand out due to:
✔ Advanced Cooling System – Fanless design with aluminum extrusion ensures efficient heat dissipation, ensuring stable operation and extending the device’s lifespan.
✔ Durability & Protection – IP65/IP66-rated waterproof and dustproof designs for harsh environments.
✔ Optical Bonding Technology Custom Option – Eliminates air gaps between the touch panel and LCD, preventing fogging and improving display clarity in humid or rainy conditions.
✔ Customization Flexibility – We offer custom connectors, I/O ports, screen sizes, touch glass cover with anti-UV/AG/AF solutions etc.

Our industrial computers are widely used in factory automation, marine applications, outdoor kiosks, smart parking systems, food processing, gaming & casino terminals, medical equipment, Robot and industrial control systems etc.

The standard production lead time is 7-15 business days. However, for bulk orders or highly customized projects, it may take 2-6weeks depending on complexity and specifications. We ensure fast and efficient delivery to meet your project deadlines.

We offer a 2-year standard warranty on all our standard products. Customized products usually come with a standard 1-year warranty due to their specialized nature. During the warranty period, we provide free replacement parts for repair not caused by human factors.

Yes, we support sample orders for product evaluation. Please contact us to discuss your sample requirements.

All our industrial Panel PCs, monitor, and Box PCs are CE, FCC, and RoHS certified, ensuring compliance with international safety and environmental standards.
