Industrial Touch Monitors for HMI

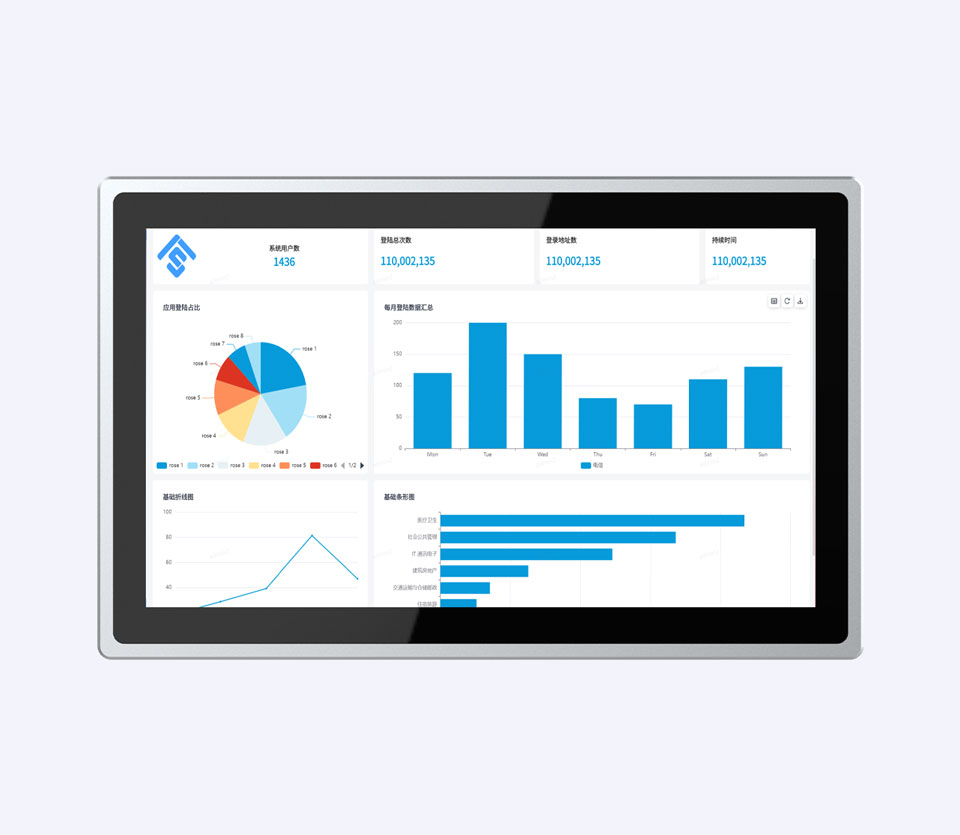

Industrial Touch Monitors for HMI – Reliable Touchscreen Displays for Industrial Automation

Our Industrial Touch Monitors provide clear, responsive displays for operators working with SCADA dashboards, PLC panels, and machine interfaces. Durable, dust- and splash-resistant, and available in multiple sizes, these monitors fit perfectly into control cabinets, machines, or kiosks. They offer reliable performance and intuitive touch control for everyday industrial operations.

Key Features
HMI Touchscreen PLC Touch Panel Operator Panel Display Durable Industrial Monitor
Request Quote

Industrial Touch Monitors for HMI Features


  •  Smooth and accurate touchscreen operation.
  •  Durable dust- and splash-resistant design.

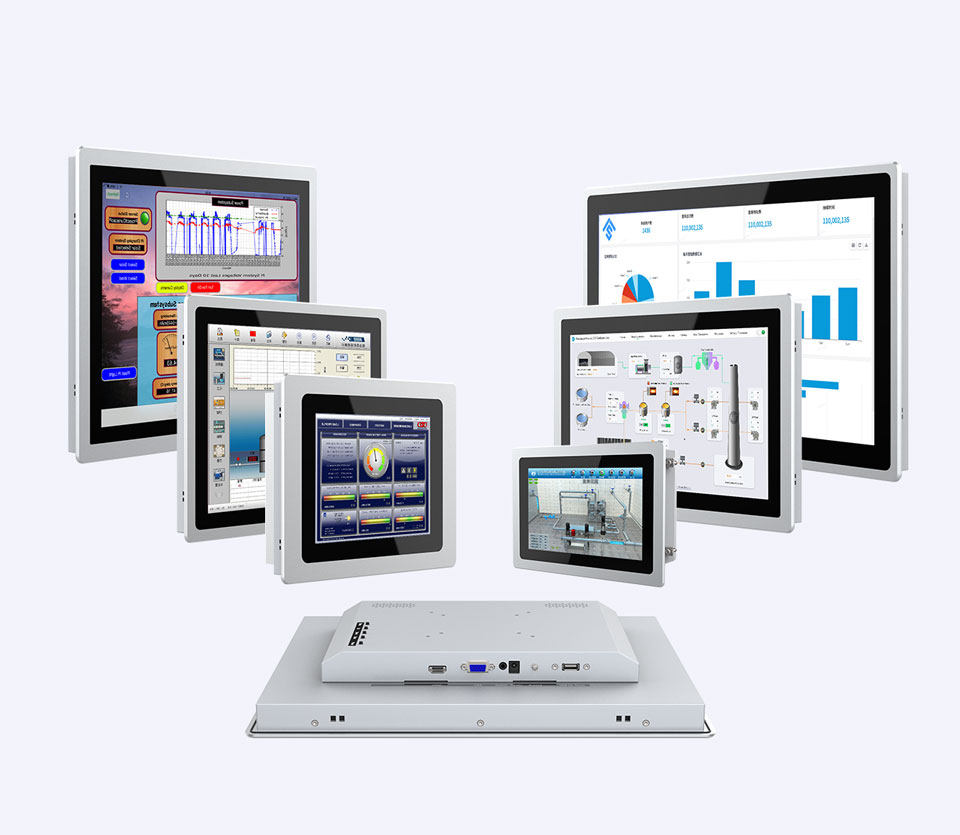

  •  Multiple display sizes for flexible installation.
  •  Clear, high-resolution visuals for operator panels.
  •  Easy to mount in control cabinets, machines, or kiosks.
  •  Reliable industrial-grade performance.
  •  Enhances operator efficiency and visibility.
  •  Energy-efficient operation for long-term use.


General Specifications

     Cooling System: Fanless design


     Dimensions (W x H x D):
               10.4”: 320x254x59mm;           12.1”: 320x254x59mm;
               15”: 376x300x59mm;             15.6”: 419x269x59mm;
               17”: 412.7x350.2x59mm;        19”: 445x370x59mm;
               21.5”: 548x345.8x59mm


      Enclosure:
          Front bezel: 6063 aluminum alloy
          Middle cover：metal sheet with coating


     Mounting: VESA Mount, Desktop, Wall or Panel Mount

     Power Input: 12VDC


Display:

     Display Device: TFT color
     Display Size: 10.4″ ~ 19″ = 4:3 (H:V)  / 15.6" ~ 21.5″ = 16:9 (H:V)
     Resolution: 1024x768; 1280x1024; 1920x1080
     Display Colors: 262K/16.7M
     Luminance (cd/m2): 250 / 350 / 450 / 500 / Or custom 1000cd
     Viewing Angle (H-V): 85/85/85/85; 89/89/89/89;
     Contrast Ratio: 1000:1
     Backlight: LED
     Backlight Lifetime (hrs): LED / 30,000; LED / 50,000;

Touchscreen:

     5-wire resistive touch Or Projected Capacitive 10-Point Multitouch;

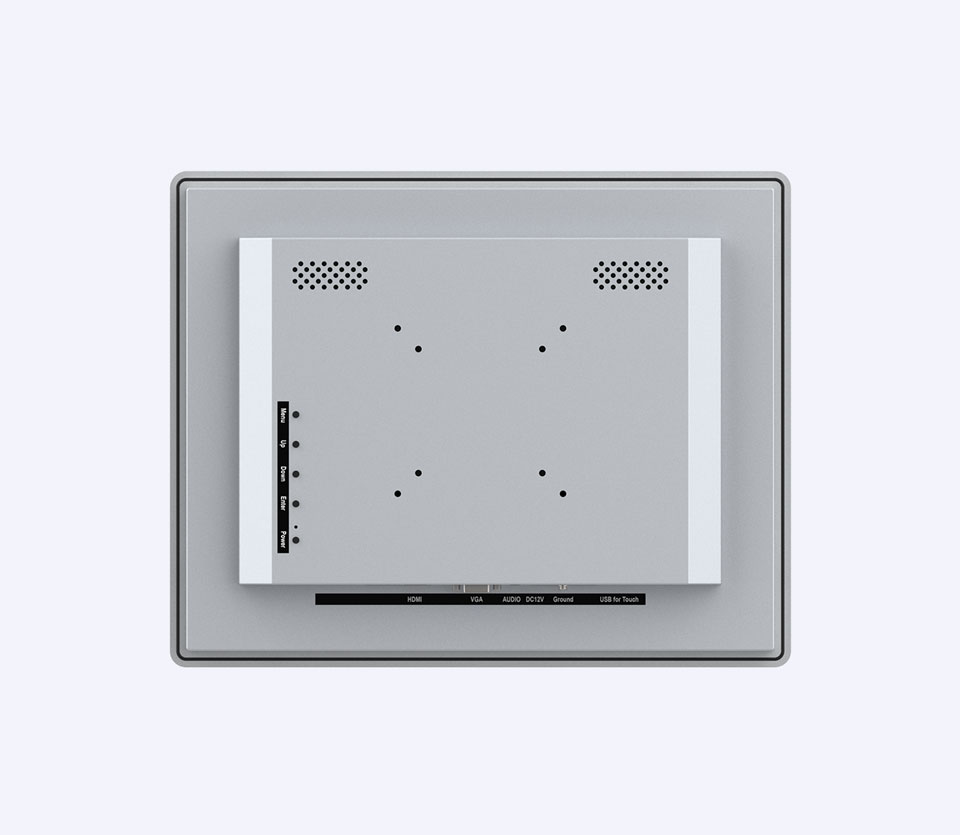

External Interface/I/O:

          USB: 1x USB2 for touch
          VGA: 1x VGA Connector
          HDMI: 1x HDMI Connector
          Audio: 1x Audio-In
          Speaker: 2x Speakers
          Grounding: 1x Grounding

Environment:

     Operating Temperature: -10°C ~ +60°C
     Storage Temperature: -20°C ~ +70°C
     Humidity Range (RH): 10% ~ 90%
     Protect: IP66 Front panel; Withstanding water, moisture, dust and vibration
     Certification: CE / FCC / RoHS



Yes! We specialize in fully customized industrial computing solutions, including high-brightness outdoor displays, fully waterproof IP65/IP66 Panel PCs & monitors, optical bonding technology for enhanced clarity, and various mounting options. Whether you need a specific CPU, RAM, storage, or enclosure design, we can tailor the product to fit your application.

Our industrial PCs stand out due to:
✔ Advanced Cooling System – Fanless design with aluminum extrusion ensures efficient heat dissipation, ensuring stable operation and extending the device’s lifespan.
✔ Durability & Protection – IP65/IP66-rated waterproof and dustproof designs for harsh environments.
✔ Optical Bonding Technology Custom Option – Eliminates air gaps between the touch panel and LCD, preventing fogging and improving display clarity in humid or rainy conditions.
✔ Customization Flexibility – We offer custom connectors, I/O ports, screen sizes, touch glass cover with anti-UV/AG/AF solutions etc.

Our industrial computers are widely used in factory automation, marine applications, outdoor kiosks, smart parking systems, food processing, gaming & casino terminals, medical equipment, Robot and industrial control systems etc.

The standard production lead time is 7-15 business days. However, for bulk orders or highly customized projects, it may take 2-6weeks depending on complexity and specifications. We ensure fast and efficient delivery to meet your project deadlines.

We offer a 2-year standard warranty on all our standard products. Customized products usually come with a standard 1-year warranty due to their specialized nature. During the warranty period, we provide free replacement parts for repair not caused by human factors.

Yes, we support sample orders for product evaluation. Please contact us to discuss your sample requirements.

All our industrial Panel PCs, monitor, and Box PCs are CE, FCC, and RoHS certified, ensuring compliance with international safety and environmental standards.
