15 inch Touch Screen Panel PC
All-in-one industrial touch panel PC designed for control cabinets, kiosks, and production lines.
Wisemaker Panel PCs are designed to deliver reliable and consistent performance in challenging industrial environments. With a fanless design and aluminum heatsink for efficient heat dissipation, they ensure stable CPU operation even under long-term continuous workloads. The durable aluminum chassis provides protection against dust, vibration, and temperature variations, making these units suitable for factory floors and automated production lines.
Choose between 5-wire resistive touch or 10-point projected capacitive (PCAP) touch, offering precise input and responsive control for a variety of industrial applications.
Serial & I/O Communication:
Standard RS232 DB9 ports are included, with optional RS485, RS422, TTL, GPIO, and CAN bus interfaces for seamless integration with industrial controllers, sensors, and automation systems.
15" Touch Screen Panel PC Specification Sheet
| Description | Product Name | 15" Fanless Embedded Touch Panel PC |
| Display | Model Number | TPC315/TPC415 (TPC315 Series for Resistive touch; TPC415 for Capacitive touch) |
| Screen size(inch) | TFT-LCD 15″ 4:3 (H:V) | |
| Physical resolution | 1024x768 | |
| Luminance (cd/m2) | 350 | |
| Viewing Angle (H-V) | 89/89/89/89 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime (hrs) | LED / 50,000 | |
| Touchscreen | Touch Type | 5-wire resistive touch Or Projected Capacitive 10-Point Multitouch |
| System | CPU Option | Intel® Celeron J1900 Intel Core Gen. 6th Option i3-6006U/6100U; i5-6200U, i7-6500 Intel Core Gen. 7th Option: i3-7020U/7100U; i5-7200U; i7-7500U Intel Core Gen. 11th Option: i3-1115G4; i5-1135G7/1145G7; i7-1165G7 |
| RAM/Memory | 4GB standard, 8GB/16GB/64GB | |
| Storage | 64GB SSD standard,128GB,256GB,512GB SSD,1TB SSD | |
| Ethernet/LAN | 1x LAN or 2x LAN 1000Mbit RJ45 Ports | |
| Operating System | Ubuntu; Win7/8/10/11; Linux; 32Bit/64Bit | |
| I/O Ports | USB Ports | 4x USB version or 6x USB version |
| Serial Ports | 2x COM or 6x COM ports Full-PIN (RS232 default) | |
| Optional COM | 1X RS422 /1X RS485 COM | |
| VGA | 1x VGA Connector | |
| HDMI | 1x HDMI Connector | |
| Audio | MIC-In, EAR-Out | |
| Power | 100-240V ACDC active switching adaptor; 1x 12V DC-In | |
| Optional WI-Fi | WIFI includes bluetooth (two-in-one) | |
| Operating Temperature | -10～+60°C | |
| Storage Temperature | -20～+70°C | |
| Protect | IP65/IP66 Front panel; Withstanding water, moisture, dust and vibration | |
| Construction | Aluminum Front bezel + cooling cover + metal enclosure |

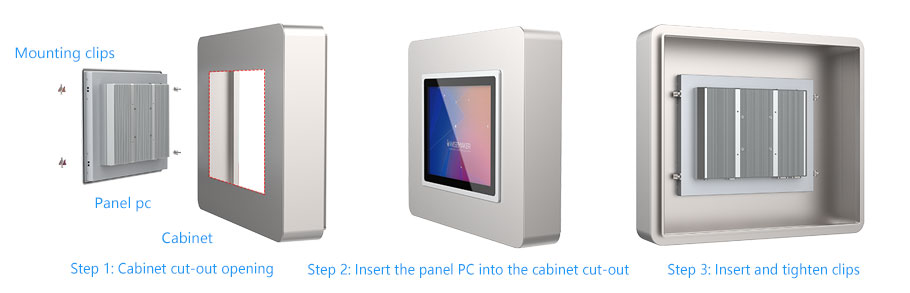

Mounting support:
Standard Accessories:
- Power Adapter x1
- Mounting Brackets / Screws for panel mount
Optional Accessories:
- Wall Mount Kit
- Desktop Stand
- External Fan Kit
- Stylus Pen
Optional Functions:
- TTL / GPIO / CAN Communication Support
- Optional 4G LTE / 5G Connectivity
- Wi-Fi / Bluetooth / RFID / NFC Modules
- Barcode Scanner Integration (Optional)
- High Brightness Outdoor Display
- Special Touch Screen Options (Anti-UV/Anti-Glare / Anti-Fingerprint / AR)
Environmental Options:
- Wide Temperature Range Support
- Full IP65 / IP66 / IP69K Waterproof Solutions Available
Compliance & Certification:
- CE, FCC, RoHS Certified
Yes! We specialize in fully customized industrial computing solutions, including high-brightness outdoor displays, fully waterproof IP65/IP66 Panel PCs & monitors, optical bonding technology for enhanced clarity, and various mounting options. Whether you need a specific CPU, RAM, storage, or enclosure design, we can tailor the product to fit your application.
Our industrial PCs stand out due to:
✔ Advanced Cooling System – Fanless design with aluminum extrusion ensures efficient heat dissipation, ensuring stable operation and extending the device’s lifespan.
✔ Durability & Protection – IP65/IP66-rated waterproof and dustproof designs for harsh environments.
✔ Optical Bonding Technology Custom Option – Eliminates air gaps between the touch panel and LCD, preventing fogging and improving display clarity in humid or rainy conditions.
✔ Customization Flexibility – We offer custom connectors, I/O ports, screen sizes, touch glass cover with anti-UV/AG/AF solutions etc.
Our industrial computers are widely used in factory automation, marine applications, outdoor kiosks, smart parking systems, food processing, gaming & casino terminals, medical equipment, Robot and industrial control systems etc.
The standard production lead time is 7-15 business days. However, for bulk orders or highly customized projects, it may take 2-6weeks depending on complexity and specifications. We ensure fast and efficient delivery to meet your project deadlines.
We offer a 2-year standard warranty on all our standard products. Customized products usually come with a standard 1-year warranty due to their specialized nature. During the warranty period, we provide free replacement parts for repair not caused by human factors.
Yes, we support sample orders for product evaluation. Please contact us to discuss your sample requirements.
All our industrial Panel PCs, monitor, and Box PCs are CE, FCC, and RoHS certified, ensuring compliance with international safety and environmental standards.
