Industrial Web-Browser HMI Terminals Features

Industrial Web Browser HMI Terminals for SCADA and PLC

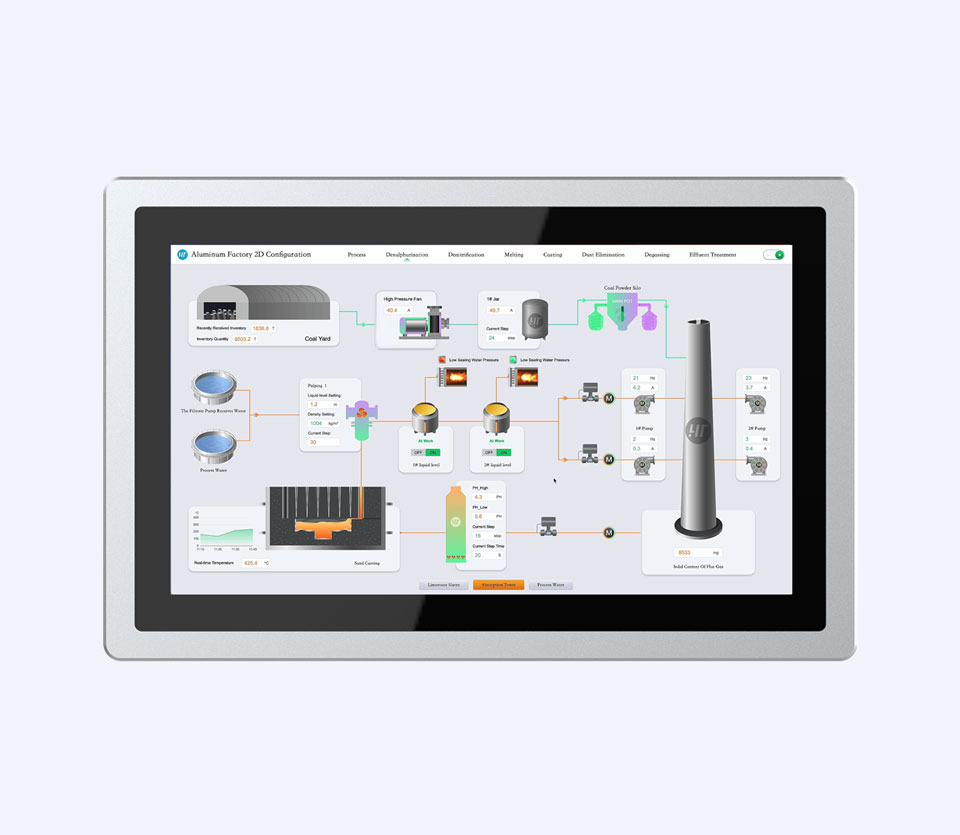

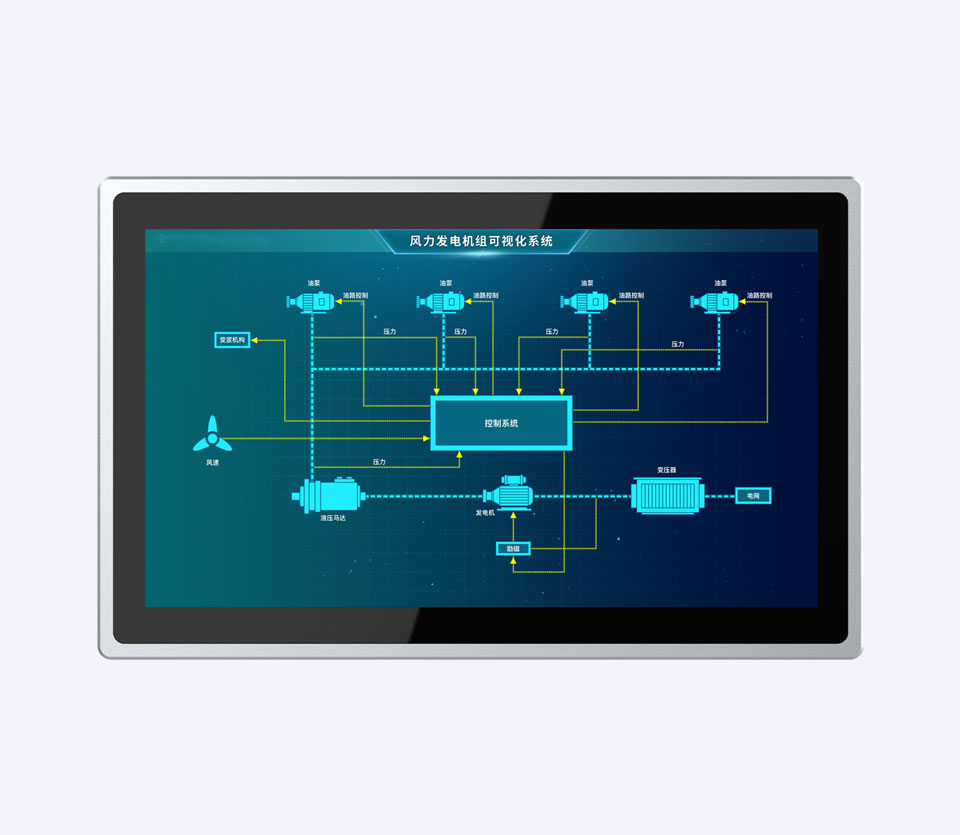

Our ARM-based web HMI terminals give operators a smooth, reliable interface for SCADA dashboards, PLC web panels, and cloud-based monitoring. With options from RK3288 to RK3588, you can pick the right performance level for everything from simple browser control to high-resolution, graphics-heavy industrial applications.

•  Browser-Based HMI – Provides smooth and intuitive web-browser control for SCADA dashboards, PLC panels, cloud platforms, and equipment monitoring.

•  Multiple ARM CPU Options – Choose from RK3288, RK3566, RK3588, and RK3576 to match performance needs from basic control to high-resolution, graphics-heavy HMI.

•  Reliable Continuous Operation – Built to stay online, load fast, and maintain smooth operation for 24/7 industrial use.

•  Flexible Mounting – Easily integrates into control cabinets, machines, kiosks, and other industrial setups.

•  Low Power Consumption – ARM-based terminals provide energy-efficient operation without compromising performance.

•  Industrial Connectivity – Supports Wi-Fi and Ethernet for stable network communication and remote access.

•  Real-Time Monitoring – Offers clear visibility and intuitive control for operators, making SCADA and PLC-based automation tasks simpler and more efficient.

General Specifications

     Cooling System: Fanless design

     Dimensions (W x H x D):
               10.4”: 320x254x59mm;           12.1”: 320x254x59mm;
               15”: 376x300x59mm;             15.6”: 419x269x59mm;
               17”: 412.7x350.2x59mm;        19”: 445x370x59mm;
               21.5”: 548x345.8x59mm

      Enclosure:
          Front bezel: 6063 aluminum alloy
          Middle cover：metal sheet with coating

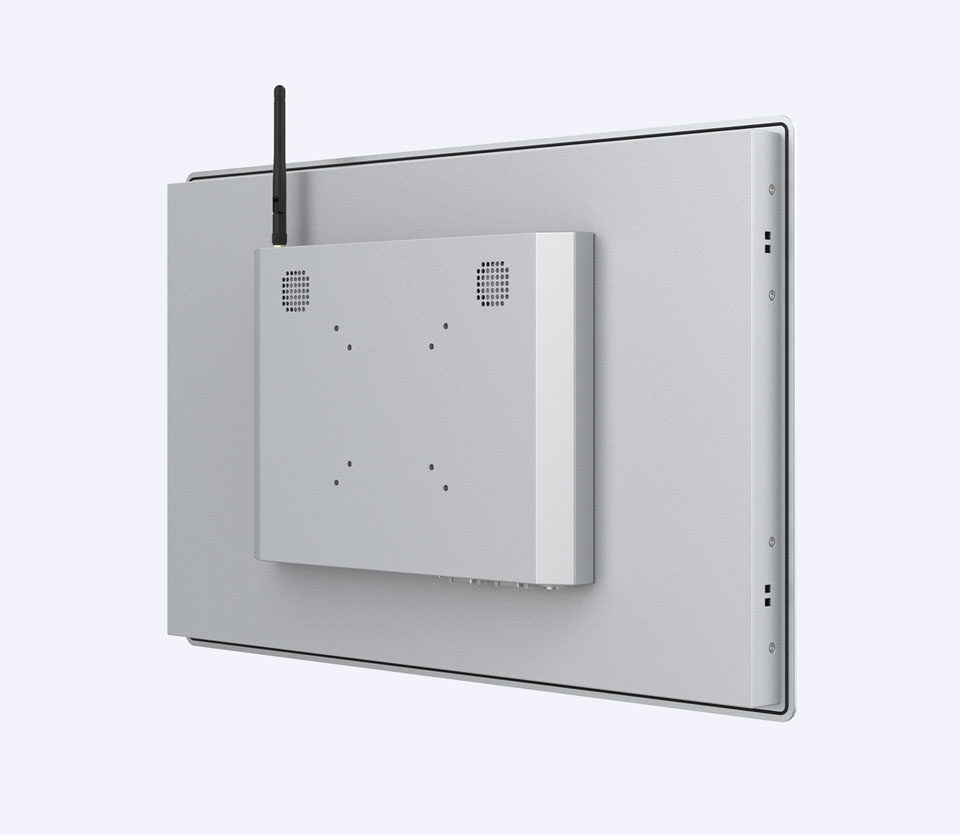

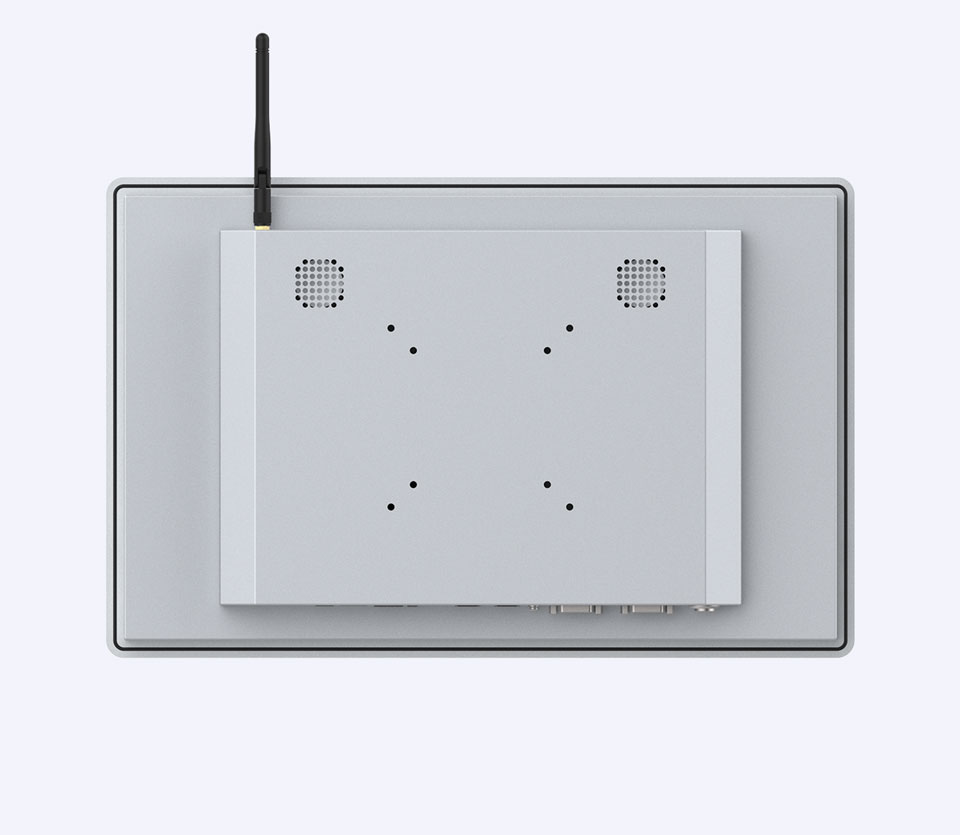

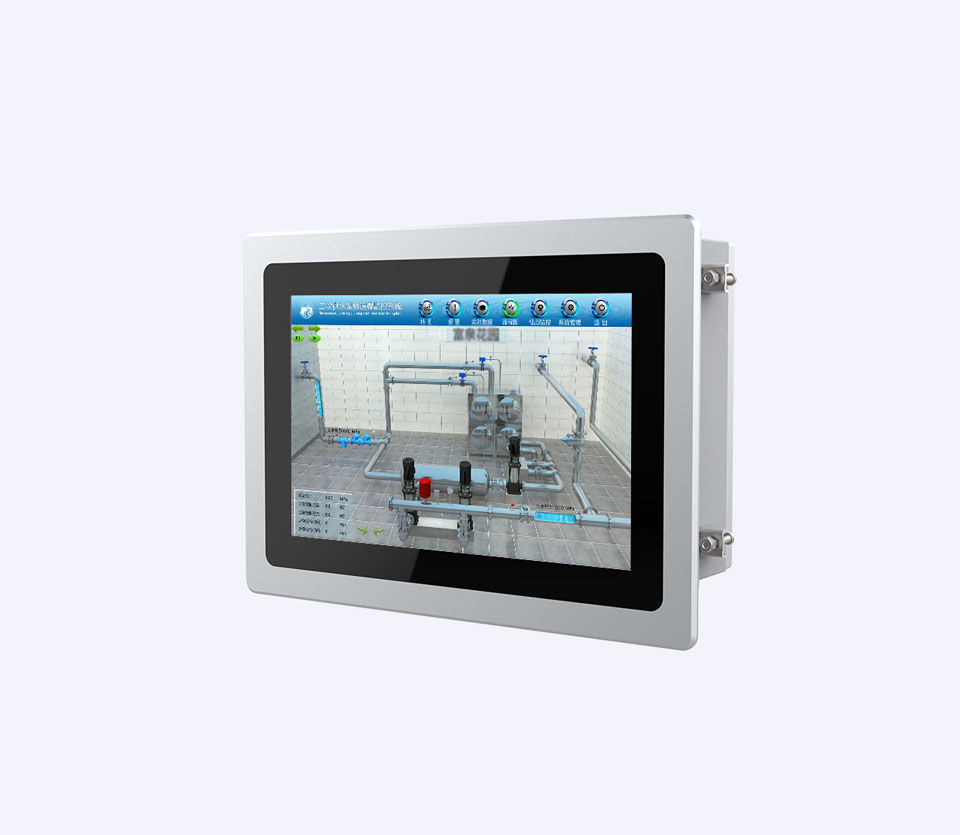

     Mounting: VESA Mount, Desktop, Wall or Panel Mount

     OS Support: Android 7/11/14, Linux

     Power Input: 12VDC

Display:

     Display Device: TFT color
     Display Size: 10.4″ ~ 19″ = 4:3 (H:V)  / 15.6" ~ 21.5″ = 16:9 (H:V)
     Resolution: 1024x768; 1280x1024; 1920x1080
     Display Colors: 262K/16.7M
     Luminance (cd/m2): 250 / 350 / 450 / 500 / Or custom 1000cd
     Viewing Angle (H-V): 85/85/85/85; 89/89/89/89;
     Contrast Ratio: 1000:1
     Backlight: LED
     Backlight Lifetime (hrs): LED / 30,000; LED / 50,000;

Touchscreen:

     5-wire resistive touch Or Projected Capacitive 10-Point Multitouch;

System Hardware:

      ARM - based processor options:

          1. RK3288  quad-core Cortex-A17 with Mail -T764 GPU
          2. RK3566 quad-core Cortex-A55 around 1.8GHz

          3. RK3588 8-core 64-bit with quad Cortex-A76 + quad Cortex-A55 and Mali-G610 GPU

          4. RK3576 8-core 64-bit (Cortex-A72 + Cortex-A53 big. LITTLE architecture) up to 2.2GHz

      Memory:

          4GB/8GB/16GB available.

      Storage:

           32GB, 64GB,128GB

      External Interface/I/O:

          USB: 3x USB2.0
          LAN: 1xLAN 100Mbit RJ45 Ports
          Serial Ports: 2x TTL
          HDMI: 1x HDMI Connector
          TF: 1x TF card
          Audio: 1x Line Out

Environment:

     Operating Temperature: -10°C ~ 60°C
     Storage Temperature: -20°C ~ 70°C
     Humidity Range (RH): 10% ~ 90%
     Protect: IP66 Front panel; Withstanding water, moisture, dust and vibration
     Certification: CE / FCC / RoHS
