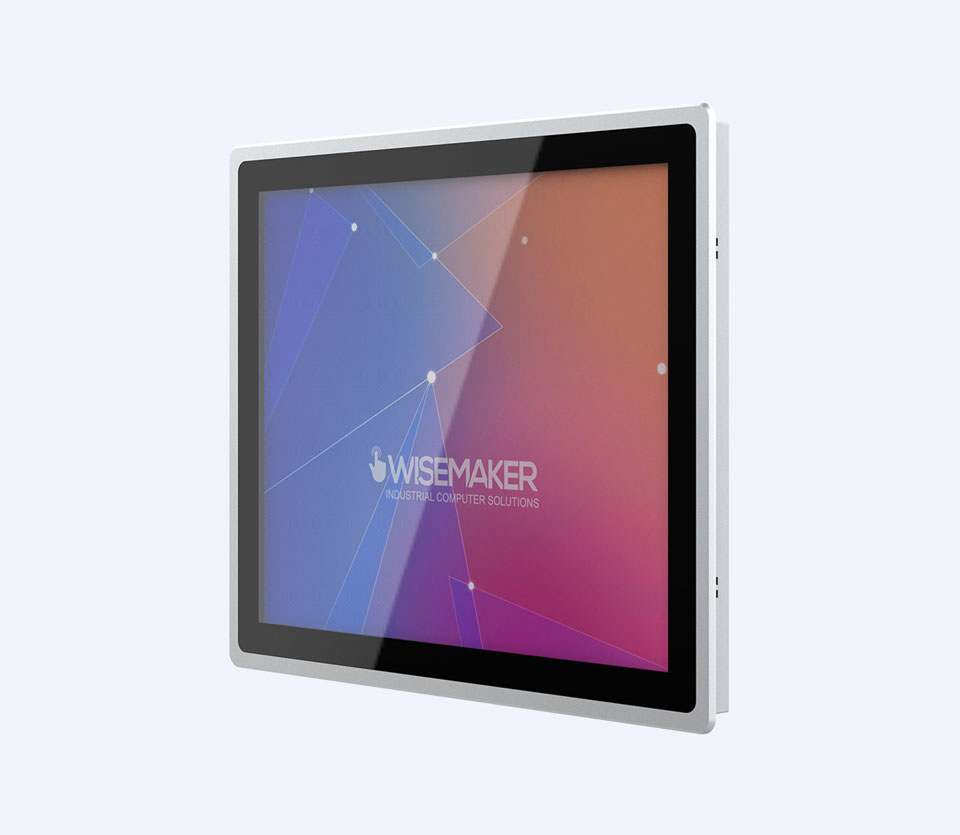

19 inch Touch Screen Panel PC

Robust 19” Industrial Touch Computer with Wide Viewing Angle, Multiple I/O Ports, and Fanless Thermal Design.

The Wisemaker Panel PC series delivers dependable computing for industrial control, monitoring, and machine vision applications. Fanless design with an aluminum heatsink ensures consistent CPU performance, while robust industrial-grade components provide reliable long-term operation. These systems are ideal for integration into production lines, vision inspection stations, and automated workflows, offering stable and precise operation for demanding industrial tasks.

Touch options:
5-wire resistive touch or 10-point PCAP touch

Serial & I/O Communication:
Includes standard RS232 COM ports, with optional RS485, RS422, TTL, GPIO, and CAN bus for flexible connectivity with industrial automation and machine vision equipment.

Key Features

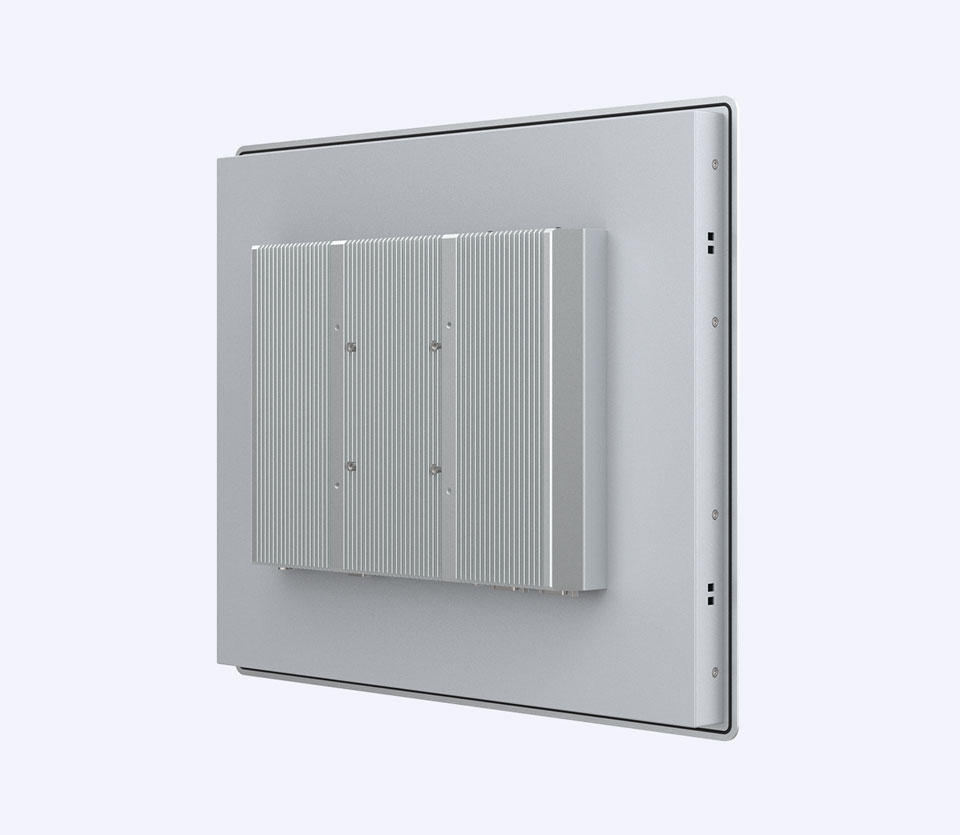

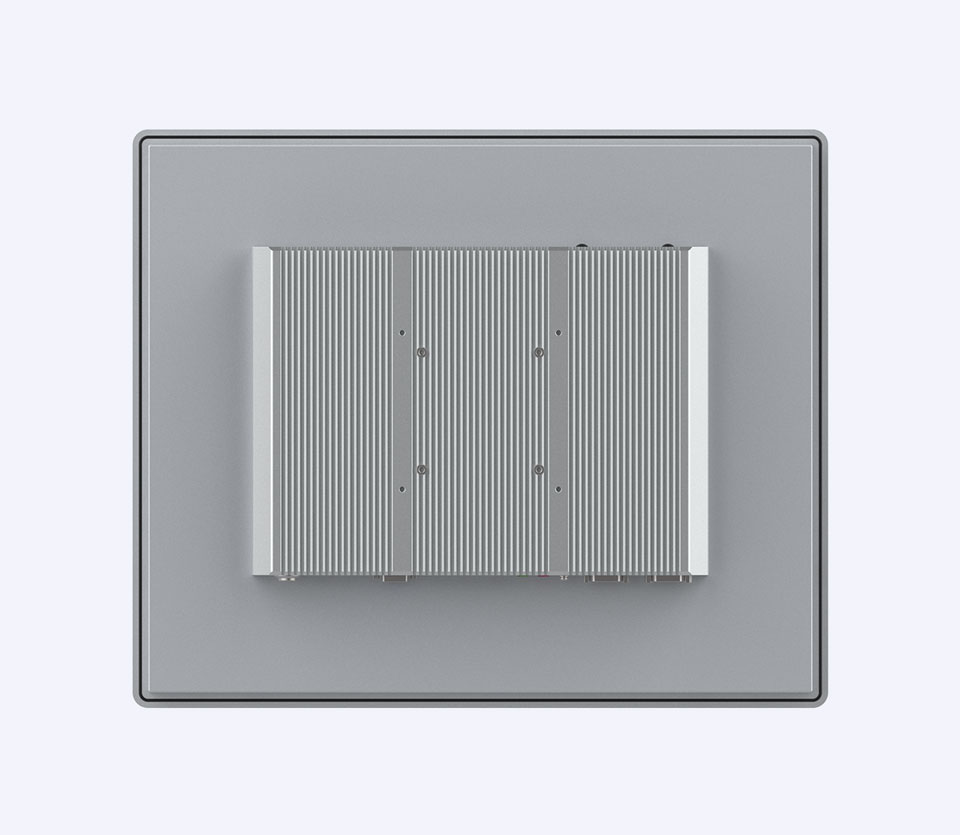

6063 Aluminum Heat Sink High-Performance CPU Support Sleek & Professional Design Industrial-Grade Build
Request Quote

19" Touch Screen Panel PC Specification Sheet

Description Product Name 19"  Fanless Embedded Touch Panel PC
Display Model Number TPC419 (Capacitive touch)
Screen size(inch) TFT-LCD 19″ 4:3 (H:V)
Physical resolution 1280×1024
Luminance (cd/m2) 250
Viewing Angle (H-V) 89/89/89/89
Contrast Ratio1000:1
Backlight Lifetime (hrs)LED / 30,000
Touchscreen Touch Type 5-wire resistive touch Or Projected Capacitive 10-Point Multitouch
System CPU Option

Intel® Celeron J1900

Intel Core Gen. 6th Option

i3-6006U/6100U; i5-6200U, i7-6500

Intel Core Gen. 7th Option:

i3-7020U/7100U; i5-7200U; i7-7500U

Intel Core Gen. 11th Option:

i3-1115G4; i5-1135G7/1145G7; i7-1165G7
RAM/Memory 4GB standard, 8GB/16GB/64GB
Storage 64GB SSD standard,128GB,256GB,512GB SSD,1TB SSD
Ethernet/LAN 1x LAN or 2x LAN 1000Mbit RJ45 Ports
Operating System Ubuntu; Win7/8/10/11; Linux; 32Bit/64Bit

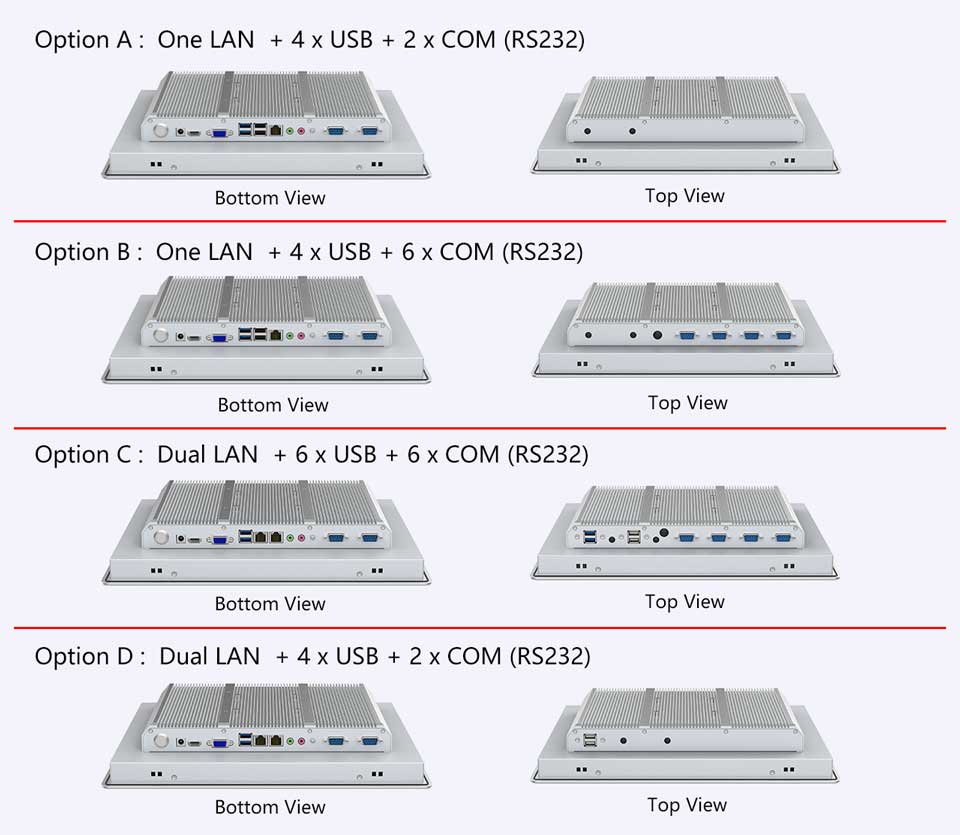

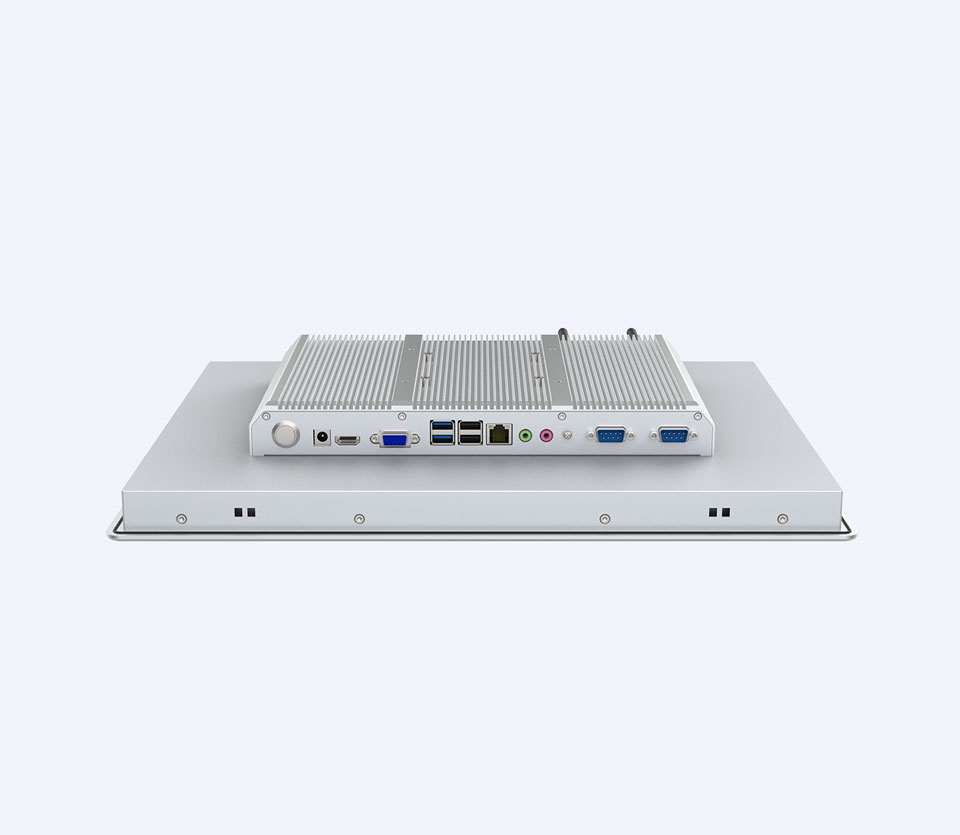

I/O Ports USB Ports 4x USB version or 6x USB version
Serial Ports 2x COM or 6x COM ports Full-PIN (RS232 default)
Optional COM 1X RS422 /1X RS485 COM
VGA 1x VGA Connector
HDMI 1x HDMI Connector
Audio MIC-In, EAR-Out
Power 100-240V ACDC active switching adaptor; 1x 12V DC-In
Optional WI-Fi WIFI includes bluetooth (two-in-one)
Operating Temperature -10～+60°C
Storage Temperature -20～+70°C
Protect IP65/IP66 Front panel; Withstanding water, moisture, dust and vibration
Construction Aluminum Front bezel + cooling cover + metal enclosure

Mounting support:

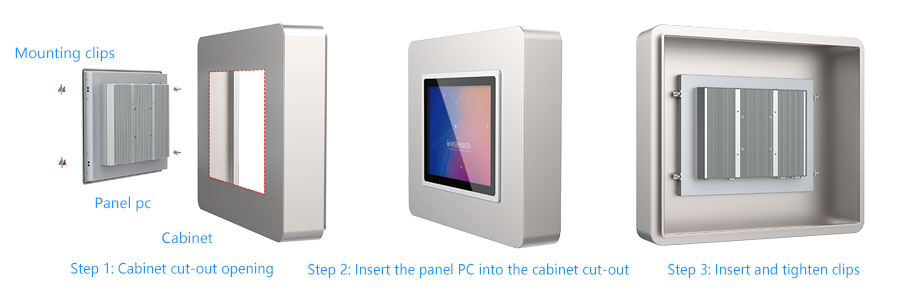

1. Panel Mount (Embedded Installation) --Standard come with embedded brackets.
Designed for seamless integration into control cabinets, kiosks, and machinery panels
— Our standard Panel PCs come with embedded brackets (also known as mounting clips), allowing for easy and secure panel mount installation.
wall-mount-3
2. VESA Mount (Wall Mount Installation) --Optional Accessory
Supports standard VESA mounting for easy attachment to walls, arms, or brackets — ideal for space-saving industrial environments.
The following is the wall mount installation method. Wall mount brackets are not included with the standard product package.
Customers may prepare their own or purchase them separately from Wisemaker.
wall-mount-4

3. Desktop Stand Mount --Optional Accessory
Optional desktop stands provide a flexible solution for workstation use, testing stations, and control desks.
The following is the desktop installation method. A desktop stand is not included in the standard package
and can be provided as an optional accessory upon request.
Desktop-Stand-Mount-4
Standard Accessories:
  • Power Adapter x1
  • Mounting Brackets / Screws for panel mount
Optional Accessories:
  • Wall Mount Kit
  • Desktop Stand
  • External Fan Kit
  • Stylus Pen
Optional Functions:
  • TTL / GPIO / CAN Communication Support
  • Optional 4G LTE / 5G Connectivity
  • Wi-Fi / Bluetooth / RFID / NFC Modules
  • Barcode Scanner Integration (Optional)
  • High Brightness Outdoor Display
  • Special Touch Screen Options (Anti-UV/Anti-Glare / Anti-Fingerprint / AR)
Environmental Options:
  • Wide Temperature Range Support
  • Full IP65 / IP66 / IP69K Waterproof Solutions Available
Compliance & Certification:
  • CE, FCC, RoHS Certified

19inch_panel_pc_dimension

Yes! We specialize in fully customized industrial computing solutions, including high-brightness outdoor displays, fully waterproof IP65/IP66 Panel PCs & monitors, optical bonding technology for enhanced clarity, and various mounting options. Whether you need a specific CPU, RAM, storage, or enclosure design, we can tailor the product to fit your application.

Our industrial PCs stand out due to:
✔ Advanced Cooling System – Fanless design with aluminum extrusion ensures efficient heat dissipation, ensuring stable operation and extending the device’s lifespan.
✔ Durability & Protection – IP65/IP66-rated waterproof and dustproof designs for harsh environments.
✔ Optical Bonding Technology Custom Option – Eliminates air gaps between the touch panel and LCD, preventing fogging and improving display clarity in humid or rainy conditions.
✔ Customization Flexibility – We offer custom connectors, I/O ports, screen sizes, touch glass cover with anti-UV/AG/AF solutions etc.

Our industrial computers are widely used in factory automation, marine applications, outdoor kiosks, smart parking systems, food processing, gaming & casino terminals, medical equipment, Robot and industrial control systems etc.

The standard production lead time is 7-15 business days. However, for bulk orders or highly customized projects, it may take 2-6weeks depending on complexity and specifications. We ensure fast and efficient delivery to meet your project deadlines.

We offer a 2-year standard warranty on all our standard products. Customized products usually come with a standard 1-year warranty due to their specialized nature. During the warranty period, we provide free replacement parts for repair not caused by human factors.

Yes, we support sample orders for product evaluation. Please contact us to discuss your sample requirements.

All our industrial Panel PCs, monitor, and Box PCs are CE, FCC, and RoHS certified, ensuring compliance with international safety and environmental standards.
