HMI Control Panel Systems Features

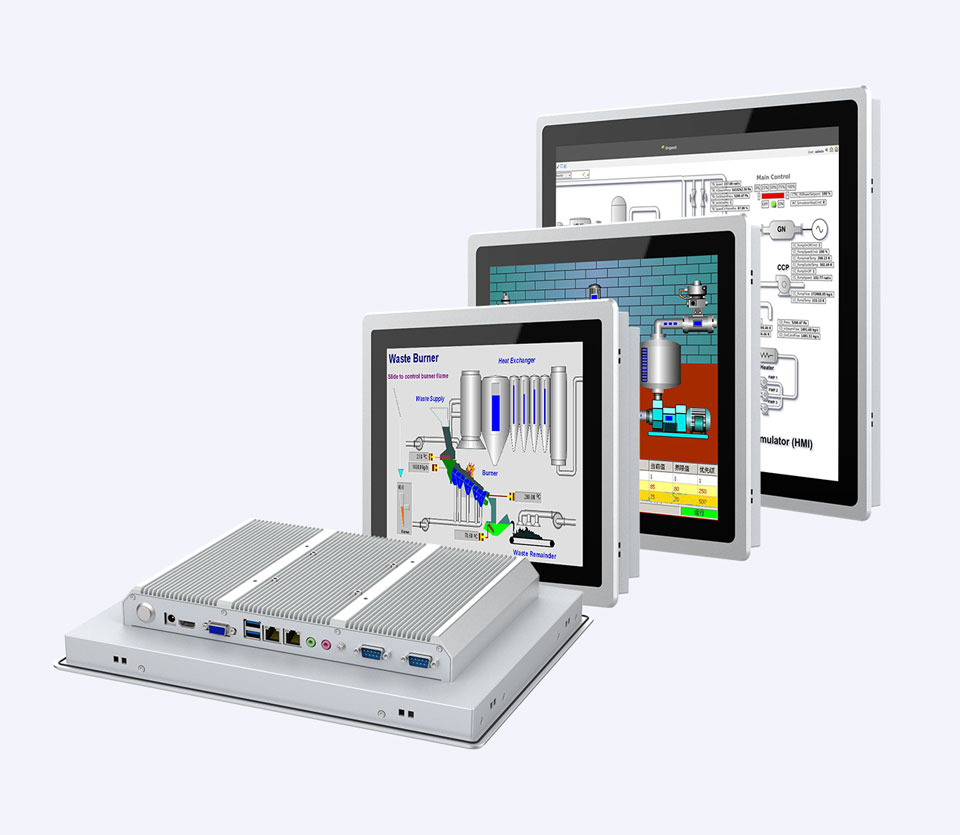

10.4 inch - 21.5 inch TFT LED LCD Touch Panel Computer with Intel Celeron J1900/J6412 or 6th Gen.-14th Gen. Intel® Core™ i3/ i5/ i7 Processor.

•  Industrial-grade TFT LCD with Full viewing angle .

•  Wide range of CPU processor option from J1900/J6412 to i3/i5/i7 6th Gen. - 14th Gen.

•  Dual channel memory DDR3/DDR4/DDR5 slots support up to 64G in total.

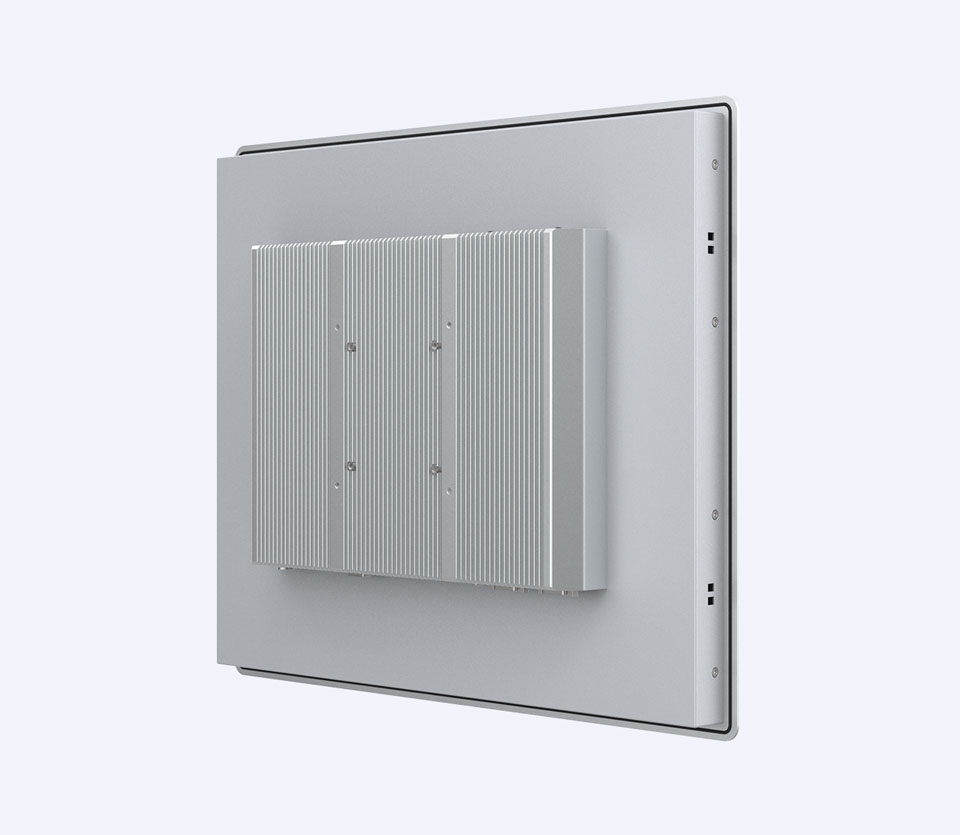

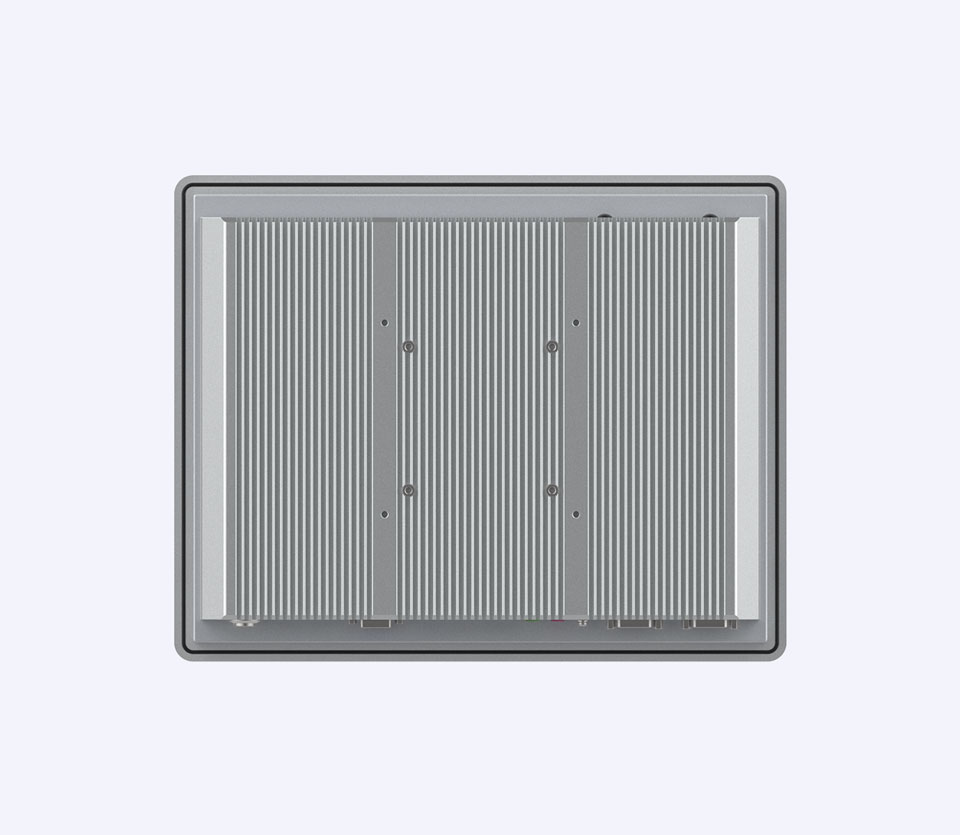

•  Compact, fanless embedded system with aluminum alloy front bezel, 6063 aluminum profile (large-area heat dissipation) and chassis grounding protection.

•  True-flat touchscreen with 5-wire resistive touch control or 10-Finger Multi PCAP Projective Capacitive Touch.

•  Support 64GB/128GB/256GB/512GB/1TB/2TB Msata or M.2 SSD.

•  Diverse system I/O including: VGA/HDMI/USB/Ethernet/LAN/RS-422/485; RS-232; GPIO.

•  Support expansion GPS / GPRS / Wi-Fi capabilities.

•  Support TPM2.0 hardware security.

•  Support Watchdog.

General Specifications

     Cooling System: Fanless design

     Dimensions (W x H x D):
               10.4”: 320x254x64.2mm;           12.1”: 320x254x64.2mm;
               15”: 376x300x64.2mm;             15.6”: 419x269x64mm;
               17”: 412.7x350.2x64.2mm;        19”: 445x370x64.2mm;
               21.5”: 548x345.8x65.2mm

      Enclosure:
          Front bezel: 6063 aluminum alloy
          Cooling cover：6063 aluminum profile (large-area heat dissipation)
          Middle cover：metal sheet with coating

     Mounting: VESA Mount, Desktop, Wall or Panel Mount

     OS Support: Win 10/11, Linux

     Power Input: 12VDC / 24VDC / 9~36VDC optional

Display:

     Display Device: TFT color
     Display Size: 10.4″ – 19″ = 4:3 (H:V) / 15.6" - 21.5″ = 16:9 (H:V)
     Resolution: 1024x768; 1280x1024; 1920x1080
     Display Colors: 262K/16.7M
     Luminance (cd/m2): 250 / 350 / 450 / 500 / Or custom 1000cd
     Viewing Angle (H-V): 85/85/85/85; 89/89/89/89;
     Contrast Ratio: 1000:1
     Backlight: LED
     Backlight Lifetime (hrs): LED / 30,000; LED / 50,000;

Touchscreen:

     5-wire resistive touch Or Projected Capacitive 10-Point Multitouch;

System Hardware:

      CPU processor options:

          Intel® Celeron J1900 quad-core
          Intel Elkhart LakeK Intel® core Celeron J6412 quad-core
          Intel Skylake i3-6006U/6100U; i5-6200U, i7-6500 dual-core
          Intel Kabylake i3-7020U/7100U; i5-7200U; i7-7500U dual-core
          Intel Tiger lake i3-1115G4 dual-core; i5-1135G7/1145G7 quad-core; i7-1165G7 quad-core
          Intel Alder Lake Gen. 12th i3-1210U/1215U 6-core; i5-1235U/1245U 10-core; i7-1255U/1265U 10-core
          Intel Raptor Lake Gen. 13th i3-1305U/1315U 6-core; i5-1335U/1345U 10-core; i7-1355U/1365U 10-core
          Intel Meteor Lake Gen. 14th Ultra 5 125U/135U 12-core

      Memory:

          Dual channel DDR3/DDR4/DDR5 SO-DIMM 4GB/8GB/16GB/32GB/64GB available.

      Storage:

           64GB,128GB,256GB,512GB SSD,1TB,2TB SSD

      External Interface/I/O:

          USB: 4x USB version or 6x USB version
          LAN: Single or Dual x 10/100/1000Mbit RJ45 Ports
          Serial Ports: 2x COM or 6x COM ports Full-PIN (RS232 default)
          Optional COM: RS422 / RS485 COM / CANBus / GPIO
          VGA: 1x VGA Connector
          HDMI: 1x HDMI Connector
          Audio: MIC-In, EAR-Out

Environment:

     Operating Temperature: -10°C ~ 60°C
     Storage Temperature: -20°C ~ 70°C
     Humidity Range (RH): Operating, 95% RH @ 40° C, Non-Condensing
                                     Non-Operating, 95% RH @ 60° C, Non-Condensing
     Ingress Protection: IP65/IP66-rated front panel

Expansion:

     1. WiFi 5+ BT4.2 Expansion Kit includes antenna, WIFI includes Bluetooth (two-in-one)
     2. WiFi 6+ BT5.2 Expansion Kit includes antenna, WIFI includes Bluetooth (two-in-one).
